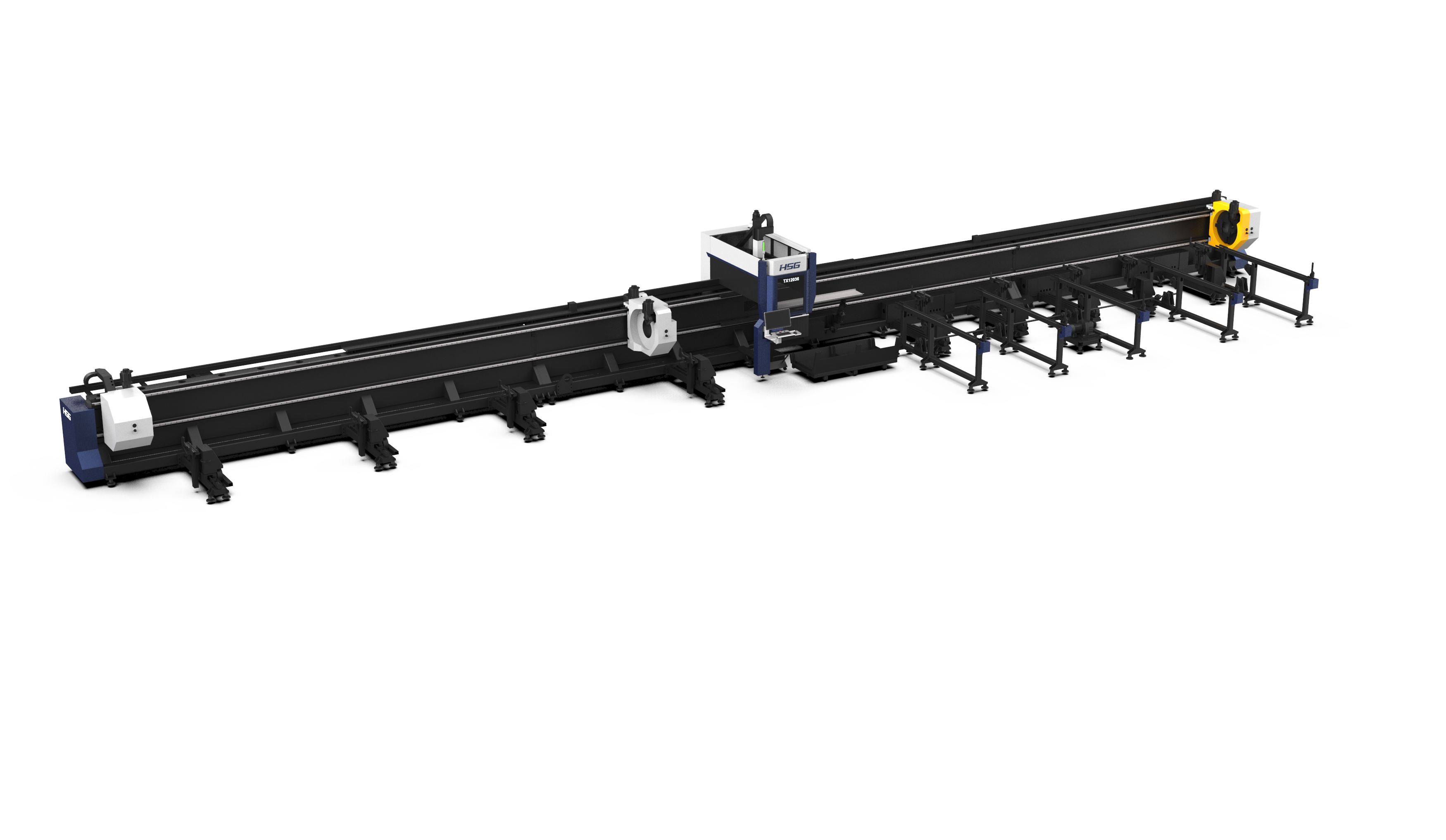

HSG-TX 3+1 Multi-Chuck Tube Laser Cutting Machine.

Heavy Duty Tube and Profile Cutting

World leading technology is built into every HSG laser cutting machine. A high end laser source is coupled to HSG's in-house developed laser focusing head to provide excellent stability and reliability. Using Ethercat bus technology to communicate with all motion components provides a fast and accurate system that is very reliable.

ART stands behind every HSG Machine we sell!

Advanced Robotic Technology is the agent for HSG Laser around Australia. We are proud to be partnered with such a reputable company. When you buy fibre laser from ART you are getting the full support of our 25 years experience in cnc technology. We stake our reputation on it.

Rather than re-invent the wheel by trying to compete against world leaders in the fibre laser industry, ART have decided it was best to team up with the best and combine our resources to provide an excellent customer experience that cannot be provided by other importers. ART has a team of dedicated technicians that work in conjunction with HSG engineers in other countries to give the end user experience that has been lacking in the industry until now.

ART is an expert in automation and can assist with your every laser requirement, from basic light sheet cutting at 3kW, all the way up to 60mm plate cutting with 40kW or greater as they become available.

Our technically capable staff are more than salespersons… they are dedicated professionals that really know the cutting industry and work with you to achieve your desired outcome.

Technical Data

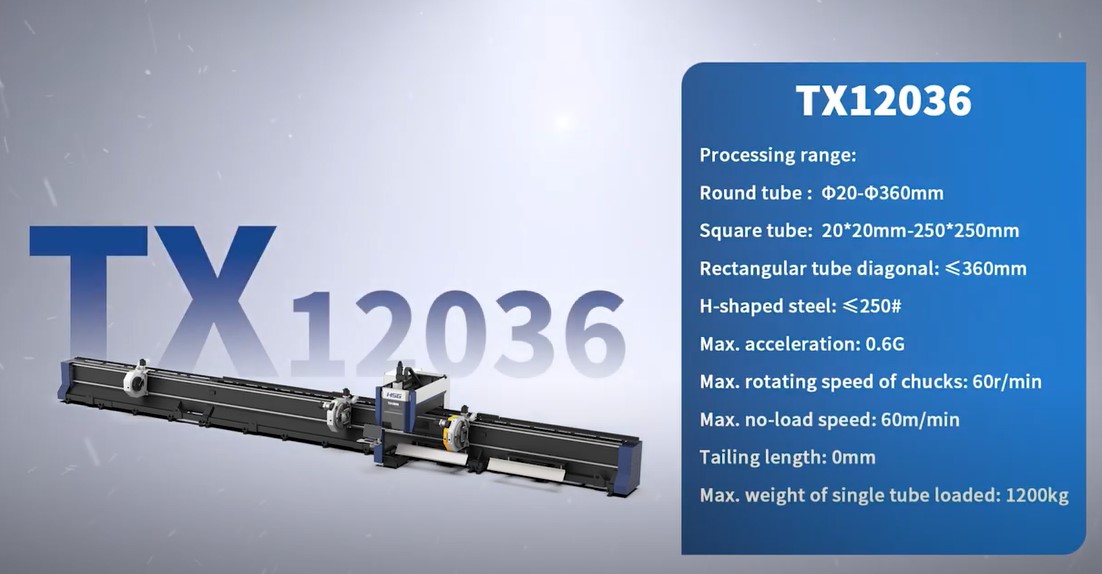

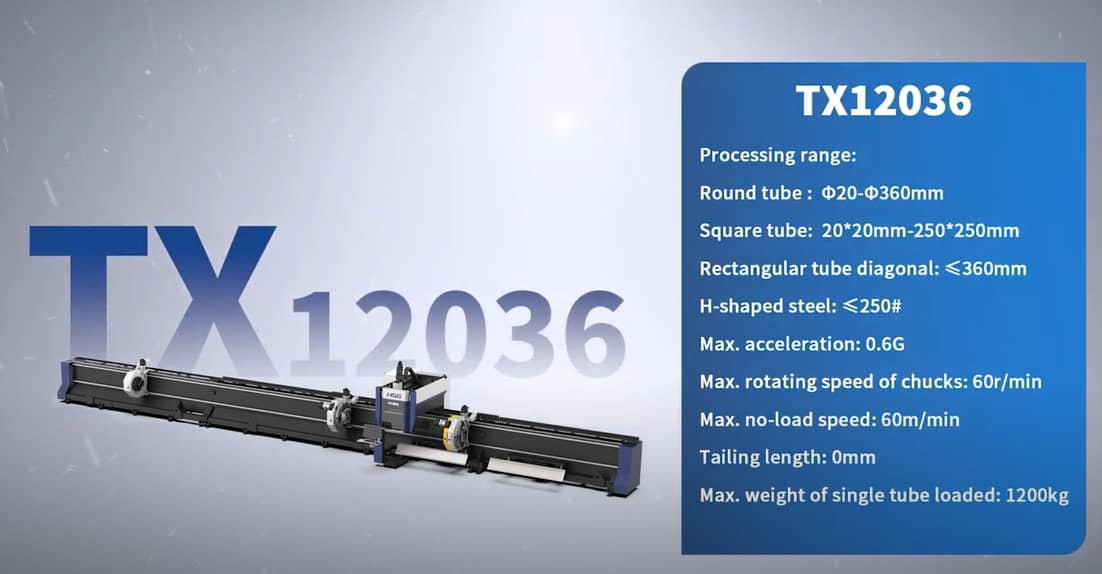

Cutting Size mm Round tube: φ40 – φ360

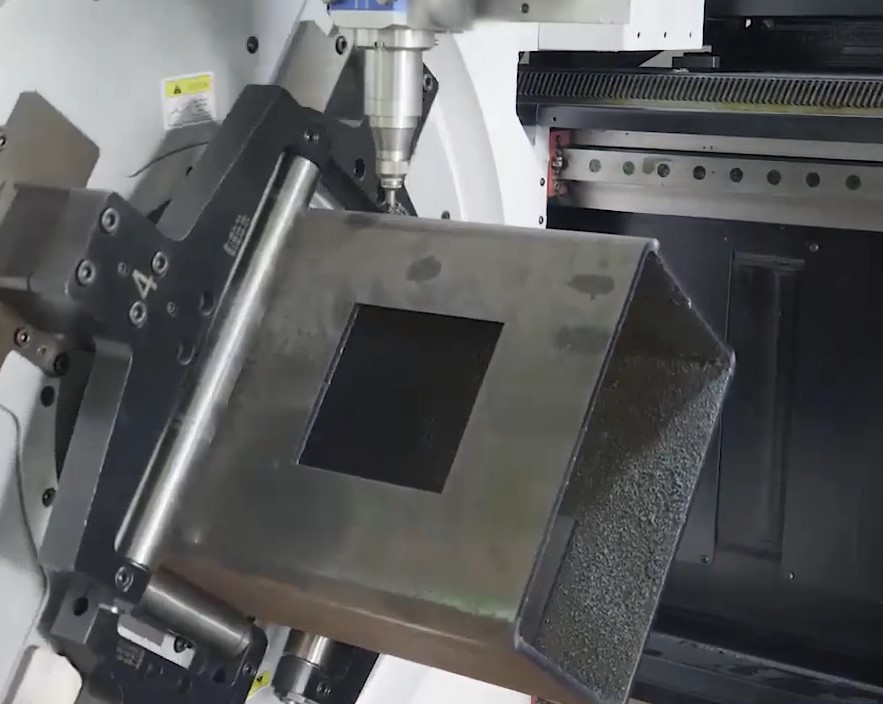

Square tube: □40*40 – □250*250

Rectangular tube: diagonal≤360

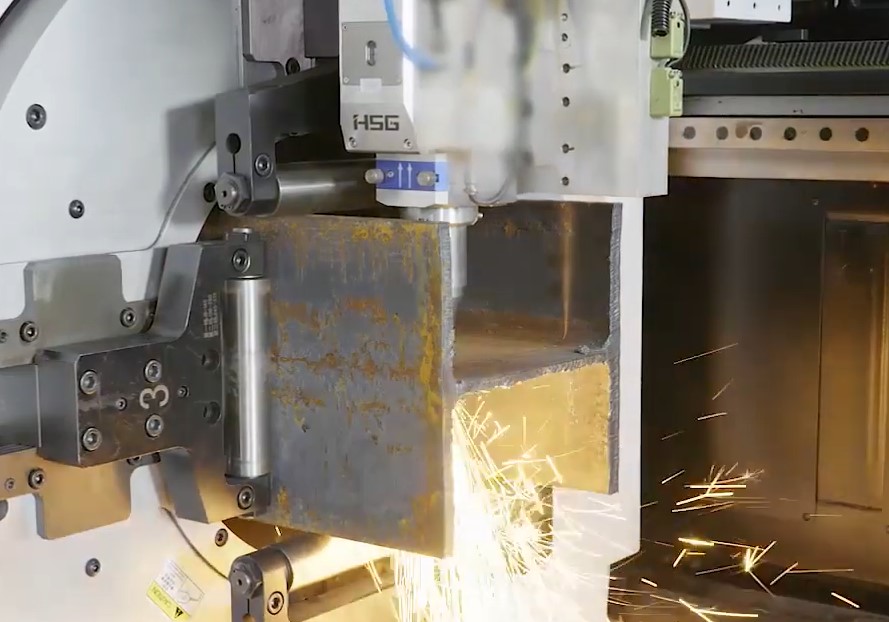

U shape diagonal≤320 , L shape each side≤250

 H shape each side≤250

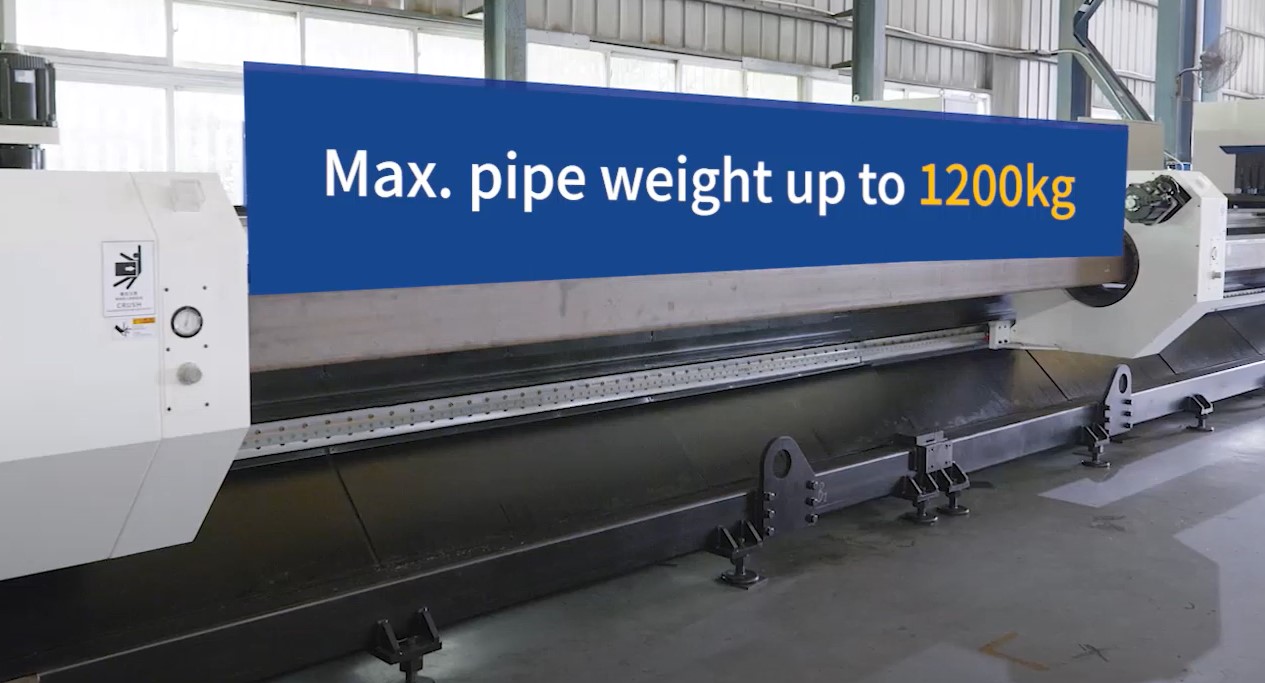

Max. Single tube weight Kg 1200
Tailing mm ≥0

Only when the nesting material is reasonable can it be achieved

Maximum Manual Loading length mm 12000
Maximum Auto Unloading length mm 12000
Max. Acceleration G 0.6
Rapid Speed m/min 60

With the increase of pipe weight, the motion parameters should be reduced correspondingly

Positioning Accuracy mm/m ±0.05
Voltage  415
Frequency Hz 50

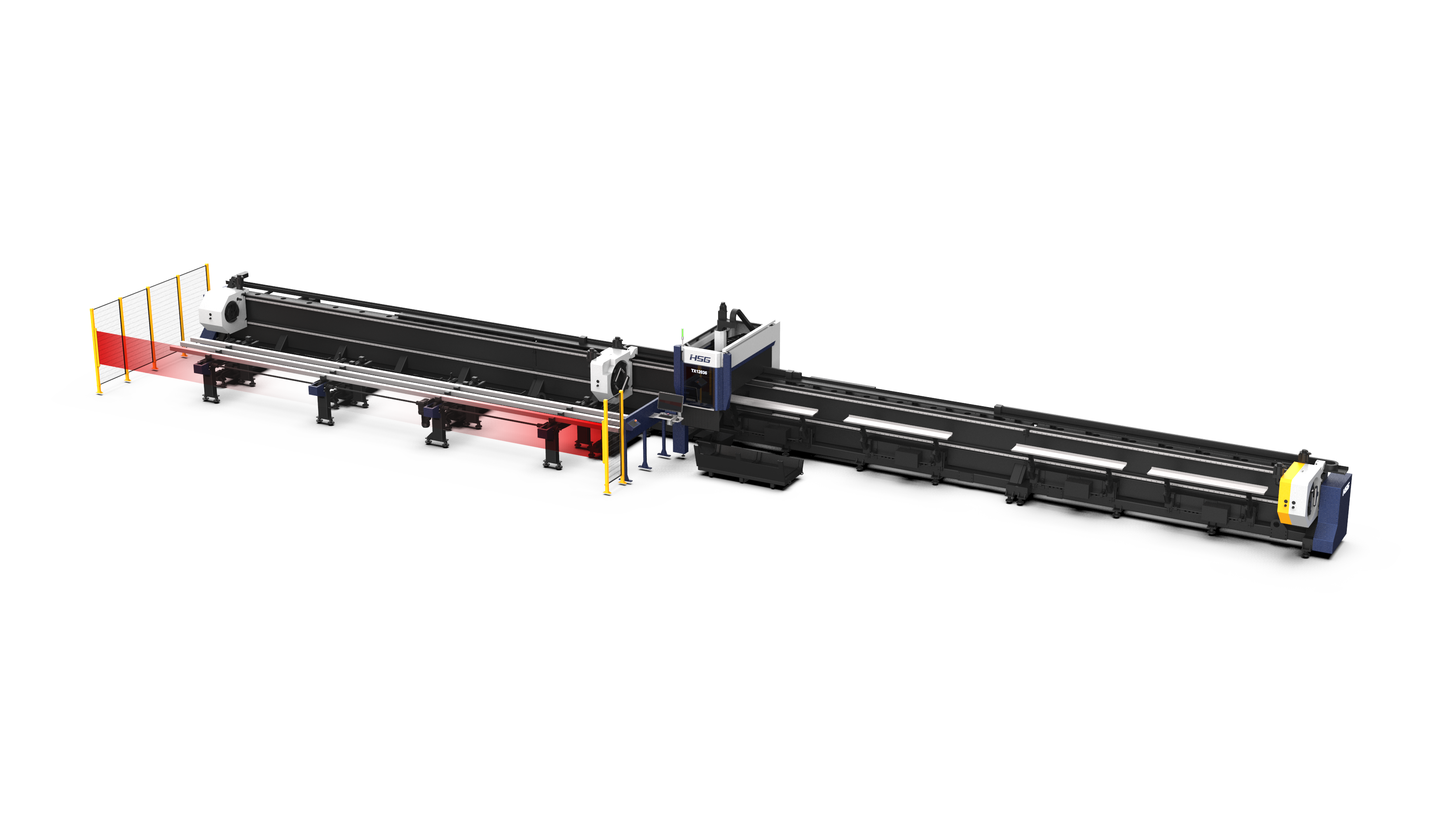

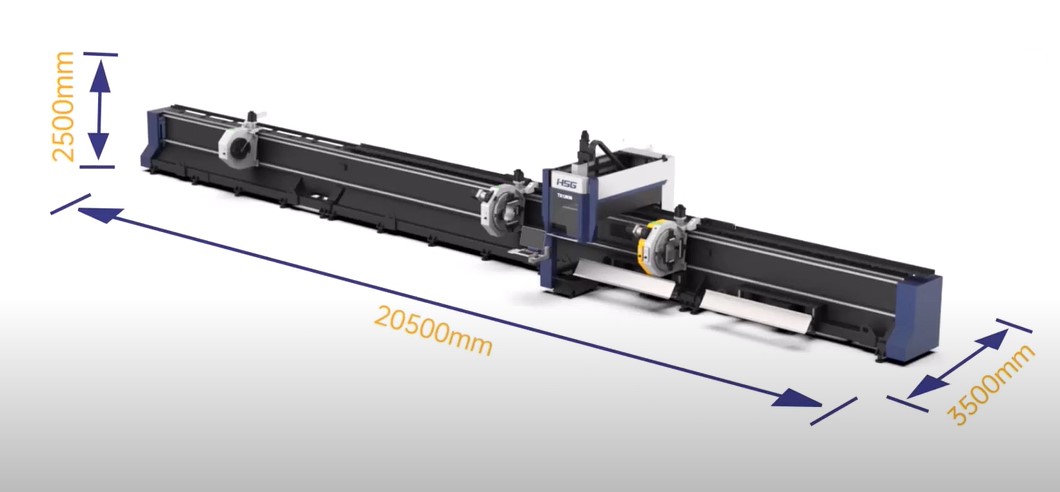

Dimension mm 27000*4000*3200mm (with single-tube loading rack)

27000*6500*3200mm (with multi- tube loading rack)

Power Data KW/A 78KW/156A(6000W)


Operational Requirements


Voltage: 415V

Frequency: 50Hz

Voltage stability: ±5%

Voltage regulation: <2%

Assist gas Supply Cutting

Purified dry compressed air and high purity,Discharge Oil Content :≤0.01ppm.Solid≤0.01um .Dew point:-20℃ ~ -40℃

Oxygen (O2) and nitrogen (N2) purity not less than 99.9% Air ,Oxygen and nitrogen pressure not less than 16 bar

Sheet metal




Compressed Air Supply Device

Pressure:  8 bar

Volume:  0.6m ³

Discharge Oil Content :≤0.01ppm.Solid≤0.01um .

Dew point:-20℃ ~ -40℃


Laser Source – Raycus

The most well-known brands of laser resonator in the market.

High output power, high quality laser beam, over 40% coefficient of efficiency.Compact design, solid and easy to install. high electrical efficiency and environmental friendly.

HSG global strategic partner

Laser Head – HSG Self R&D


Adopt Japan Optical Technologies

Focusing Accuracy up to 0.01mm

With close-loop motor installed inside the laser head, the focus speed is much faster than market level to achieve higher piercing speed in high thickness materials.

Full Protection Inside & Outside

Equipped with double bottom protective lens inside, extending the lifetime of main lens. Equipped with stainless steel cover outside, protect the lines from laser flares.

Speed Reducer & Gears

Backlash of less than 4 arc min. Smooth operation, high transmission accuracy and good feed force.

The reduction gear and wheel gear are welded to effectively guarantee the accuracy of the machine tool.

Control System – HSG X10000

Bus control through EtherCAT protocol, fast control speed with HSG fiber laser cutting optical and transmission system.

Equipped with multiple function like scan cutting, frog-jump technology , laser energy precise control, maintenance reminder, Excellent industry process reserve etc.

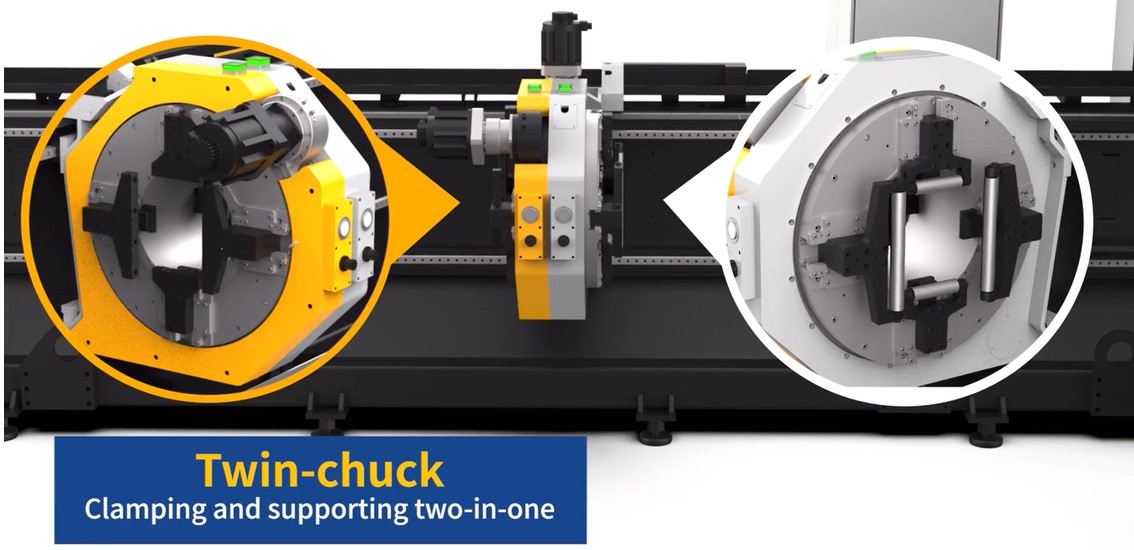

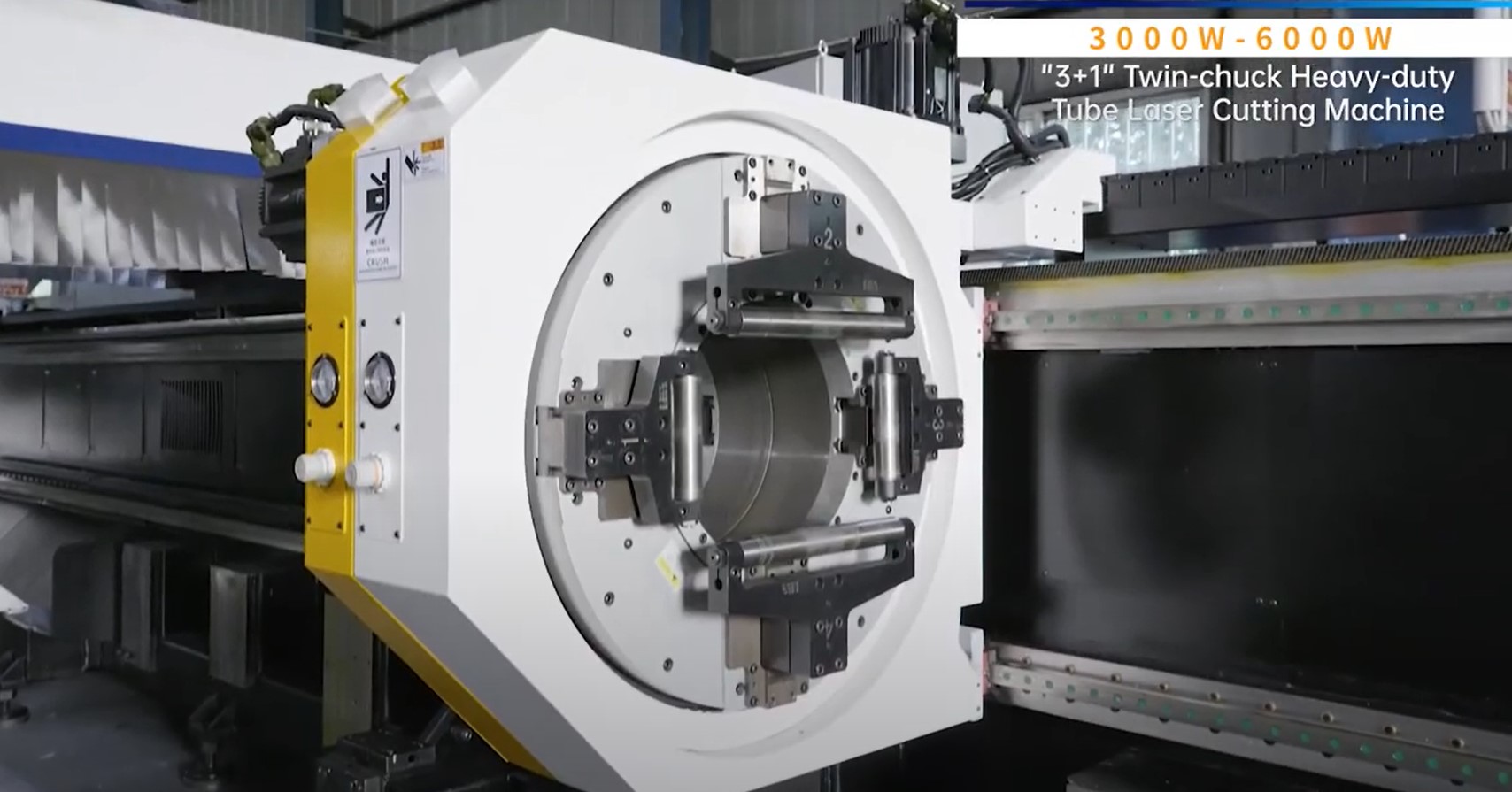

All pneumatic control chuck forms a full closed loop control with the system.

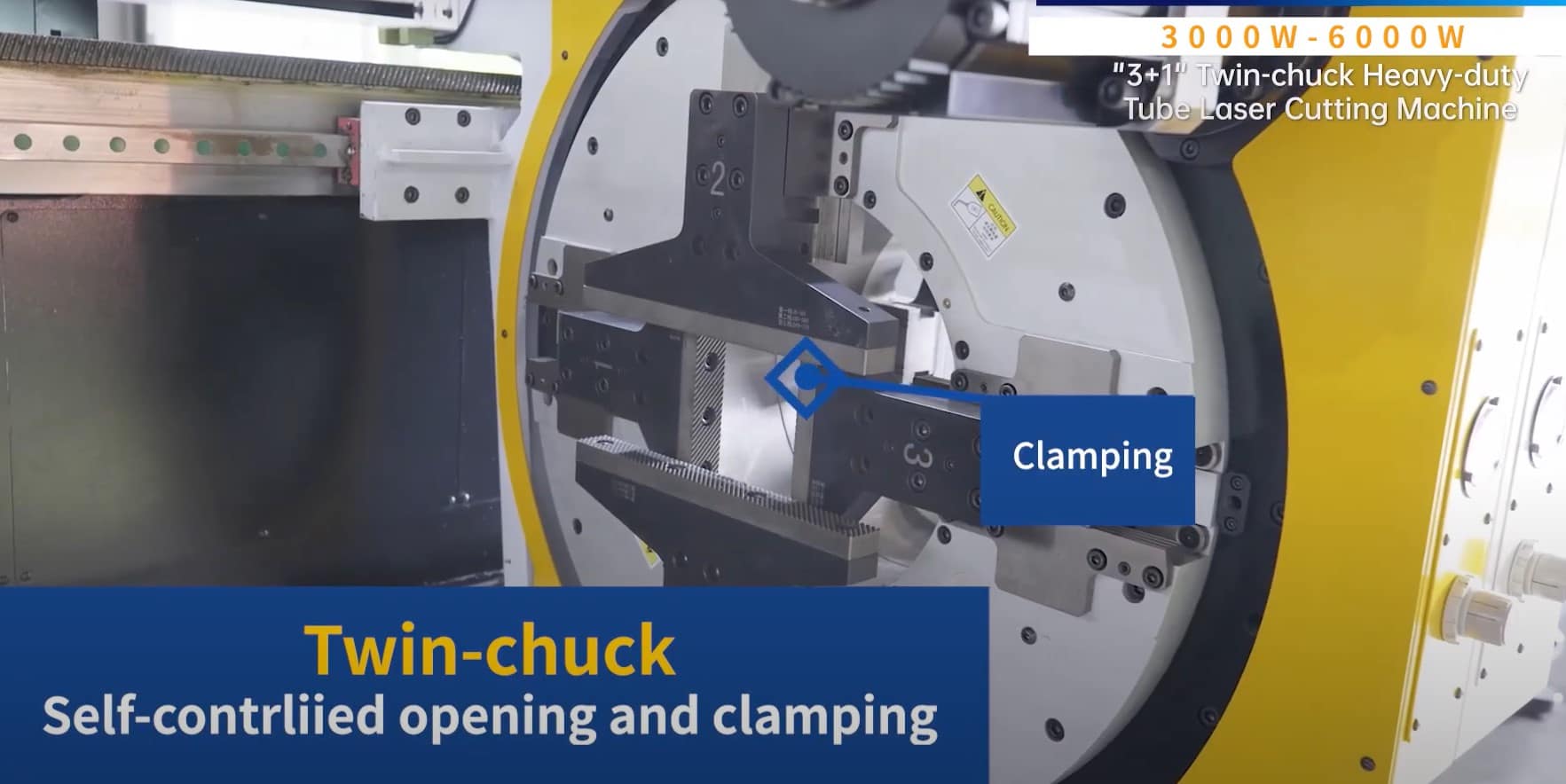

1Clamp quickly and improve efficiency.Just click the button, instantaneous can automatically centering,  clamping working-piece with stable and reliable clamping force. Size is adjustable.

2High clamping accuracy, long service life: All parts of fine selection, spare parts for excellence, all the mating surface is dust-proof.

3High security, strong reliability: the use of performance pass through the clamping force test of national authority, all accessories are in line with national standards.

Follow-up Unloading Device

related parameters:

12 meters follow-up unloading device

Functional List

HSG-X bus control system HSG  Nesting Intelligent Path Planning

Height Following

Germany DIN6

Transmission Accuracy

Tube Splicing Library
Laser Energy Precise Control Scrap Shredding Craft Fly Cutting Technology
