Engineered for high-performance tube processing

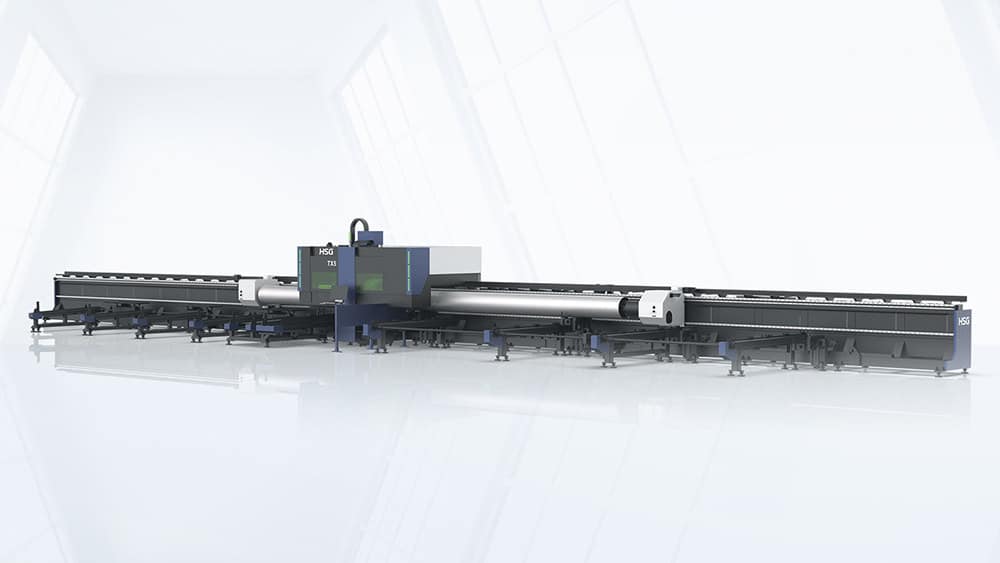

The ART TubePro510 is a 12 kW CNC tube fibre laser for high-volume processing of heavy tube, pipe and structural profiles. It combines 510 mm capacity, +/-45 degree bevel cutting and automated 12 m material handling in one production-ready system.
- Processes round, square and rectangular tube plus channel, I-beam and angle profiles.
- Handles single tubes up to 2,000 kg with servo-following support for stable, accurate cutting.
- Automated loading, unloading and intelligent nesting reduce manual handling and increase uptime.
Overview
Built for high-output fabrication
Heavy tube processing without compromise
The ART TubePro510 is a high-performance 12 kW CNC tube fibre laser built for manufacturers processing heavy tube, pipe and structural profiles. It combines 510 mm capacity, +/-45 degree bevel cutting, intelligent TubePro nesting and automated handling to deliver high output with controlled operator involvement.
Designed for serious fabrication throughput, the system processes round tube from 50 to 510 mm, square tube up to 510 mm and rectangular profiles up to 510 x 300 mm, plus channel, I-beam and angle profiles. A 12 m automatic loading and unloading system supports long material, while the 2,000 kg single-tube capacity gives the line the substance to match demanding jobs.
High-throughput automated processing

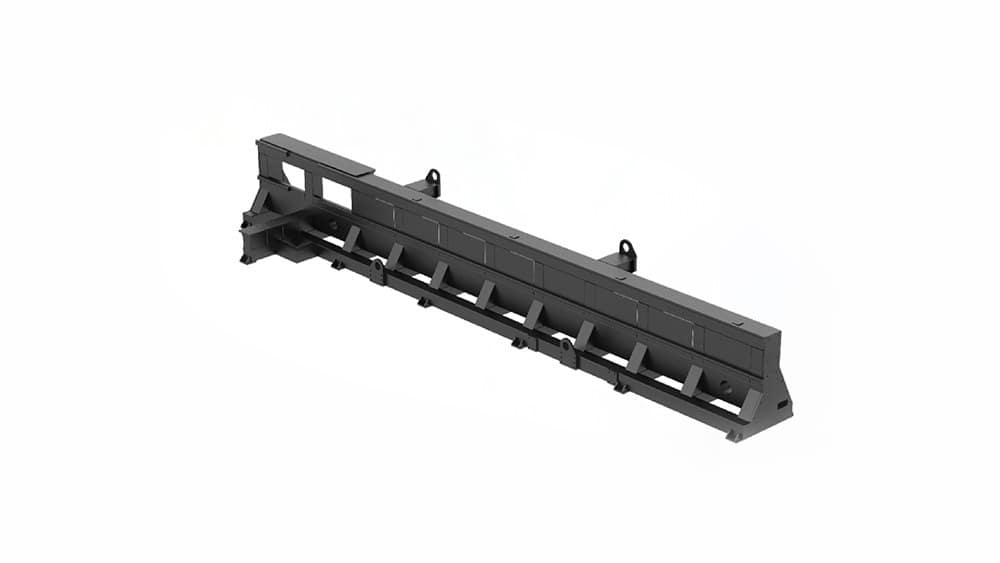

The ART TubePro510 is a high-performance 12 kW CNC tube fibre laser for manufacturers that need speed, accuracy and reliability with heavy material. A 12 m heavy-duty automatic loading system, automatic unloading and intelligent nesting software reduce handling time and help keep production moving with minimal operator intervention.

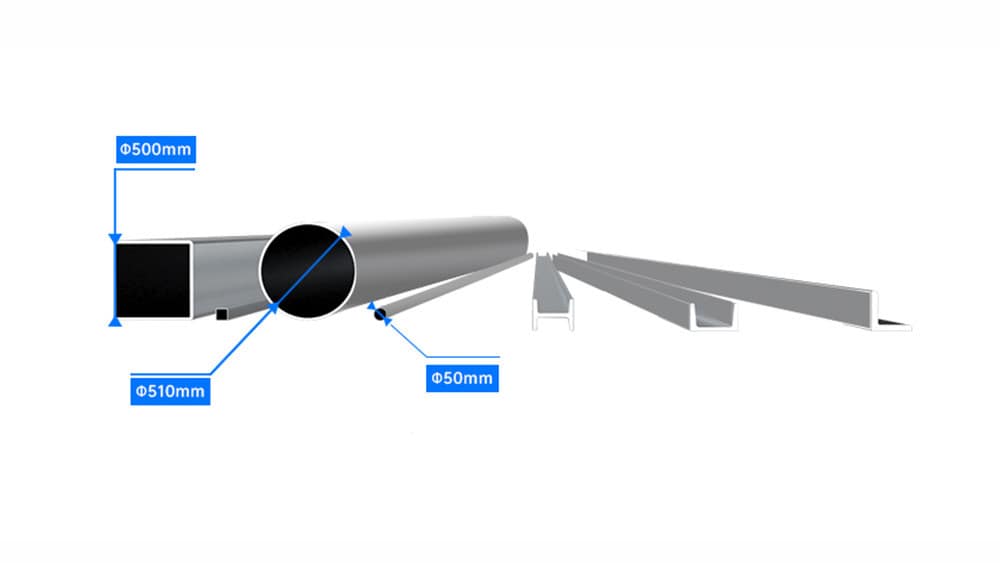

Material and profile capability
- Round tube: diameter 50-510 mm
- Square tube: 50-510 mm
- Rectangular tube: 50 x 30 mm to 510 x 300 mm
- Also suited to channel steel, I-beam and angle profiles
- Maximum tube length: 12,800 mm
- Maximum single-tube weight: 2,000 kg
- Bevel cutting range: +/-45 degrees
Automation and accuracy
Automatic loading and unloading are combined with a 510 mm pneumatic 3-jaw chuck, independent servo-following support and intelligent TubePro nesting. The system is intended to hold and support long, heavy tube securely, while reducing offcuts and preparing jobs efficiently.
- Positioning accuracy: +/-0.05 mm/m
- Repeatability: +/-0.03 mm
- Maximum traverse speed: 60 m/min
- Maximum acceleration: 0.5 G
- Chuck rotation speed: 40 rpm
Laser and machine system
- 12,000 W industrial fibre-laser source
- Laser wavelength: 1.07 micrometres
- Laser lifetime: at least 100,000 hours
- Beam parameter product: no more than 3.5 mm mrad
- 36 kW industrial water chiller
- Industrial servo motors and drives, automatic lubrication and dust extraction
- Safety enclosure and light-curtain protection
Installation information
- Machine dimensions: 35,000 x 4,600 x 2,500 mm
- Approximate machine weight: 22,000 kg
- Electrical supply: 380 V, 50/60 Hz
- Total connected load: 82 kW
- Operating environment: 5-40 degrees C and humidity up to 70%, non-condensing
Standard configuration
Standard equipment includes the 12 kW fibre-laser source, CypCut controller, automatic 12 m loading and unloading, 510 mm pneumatic 3-jaw chuck, Precitec or Raytools laser head, industrial water chiller, servo motors and drives, TubePro intelligent nesting, automatic lubrication, dust extraction and safety enclosure/light-curtain protection.
Optional equipment
Available options include a secondary chuck, marking unit, micro-joint device, enhanced fume extraction, alternative chuck sizes and extended loading length to suit the production requirement.
Local ART support
ART can scope the line around material sizes, throughput, automation needs, installation and operator workflow, then provide local commissioning, parts and technical support.
Standard Configuration
Heavy-duty capability, local support
A complete production line, ready to work
The TubePro510 is supplied as a complete production platform, not simply a laser cutting head. Standard configuration includes:
- 12 kW industrial fibre-laser source and CNC control system
- TubePro intelligent nesting software for efficient job preparation
- 12 m automatic loading and unloading system
- 510 mm pneumatic three-jaw chuck with independent servo-following support
- Industrial laser cutting head, water chiller, servo motors and drives
- Automatic lubrication, dust extraction, safety enclosure and machine guarding
ART scopes the final line around your material range, throughput and site requirements, then supports installation, commissioning and operator workflow planning locally.
Precision tube processing. Built for Australian industry.
The ART TubePro510 gives fabricators a serious production platform for large tube, structural profiles and repeat work. It combines 12 kW fibre-laser performance with heavy-duty automated handling, bevel-ready cutting and intelligent nesting so more value moves through the shop with less manual intervention.
Turn complex steel work into a repeatable workflow
Bring in tube, pipe or structural profiles, prepare the job with TubePro nesting, then let automated loading, stable servo support and high-performance cutting handle the production run. From cope and slot details to bevelled weld preparation, the TubePro510 is designed to take work that would otherwise require multiple operations and deliver it in a consistent CNC process.
- More output: automated 12 m handling and 12 kW cutting support efficient cycle times.
- More capability: process tube up to 510 mm, heavy single tubes up to 2,000 kg and bevels to +/-45 degrees.
- More confidence: repeatable positioning, heavy-duty clamping and industrial safety are built into the line.
- More value from every length: intelligent nesting helps reduce scrap and simplifies job preparation.
Configured around your work
ART can assess the profiles you process, the volume you need to achieve and the automation level that will make the biggest difference in your operation. The result is a tube-cutting line configured for your material flow, your workforce and the work you want to win.
Key Features
Material flow under control
Built for high-capacity fabrication
- 12 kW laser power: high-output processing for heavy material and demanding production schedules.
- 510 mm capacity: round, square, rectangular and structural profiles on one platform.
- +/-45 degree bevel cutting: prepare weld details and complex fit-up work in the cutting cycle.
- Automated material handling: 12 m loading and unloading, stable support and controlled handling for long, heavy tube.
- Intelligent nesting: improve material use, job preparation and workflow continuity.
- Industrial safety and control: integrated guarding, enclosure and CNC process control for dependable day-to-day operation.
A complete tube processing cell
The ART TubePro510 is designed as a production system, not simply a laser head on a tube bed. It combines 12 m automatic loading and unloading, a 510 mm pneumatic three-jaw chuck, servo-following support and intelligent nesting to keep large, heavy material moving predictably from the bundle to the finished component.
Built for the profiles that define your work
Process round tube from 50 to 510 mm, square tube from 50 to 510 mm and rectangular tube from 50 x 30 mm up to 510 x 300 mm. The platform also handles channel, I-beam and angle profiles, with material lengths up to 12,800 mm and individual tube weights up to 2,000 kg.
Cut, cope, slot and prepare for fabrication
With bevel cutting to +/-45 degrees, the TubePro510 can prepare parts for downstream assembly and welding while reducing manual layout and secondary processing. It is suited to structural steel, fabrication components, heavy tube assemblies and production work where profile accuracy and repeatability matter.
- High capacity: handle large-section material without compromising material control.
- Automation-ready: 12 m automatic load and unload supports a more efficient material flow.
- Fabrication-ready: bevel capability helps bring more preparation into the CNC cutting process.
- Job-ready programming: TubePro nesting supports practical cut planning and material use.
Precision. Performance. Partnership.
More output from every shift
A long-term production relationship
Precision comes from a platform designed for repeatable fabrication: positioning accuracy of +/-0.05 mm/m, repeatability of +/-0.03 mm, stable servo support and controlled chucking.
Performance comes from the 12 kW fibre source, up to 60 m/min traverse speed, 0.5G acceleration, 40 rpm chuck performance and automated material flow that keeps the cutting system productive.
Partnership means ART works with you from material and profile review through specification, installation, commissioning, training and ongoing local support. The objective is a tube-processing line that fits your work today and is ready for the opportunities ahead.
Designed to make a difference on the shop floor
For fabricators moving into larger profiles, heavier material and more demanding delivery schedules, the value is in the whole workflow. The TubePro510 combines a 12 kW fibre source, high-speed motion and controlled material support to make complex tube work more consistent from one job to the next.
Precision you can build production around
Positioning accuracy of +/-0.05 mm/m and repeatability of +/-0.03 mm support reliable part quality. With traverse speeds up to 60 m/min, 0.5G acceleration and a 40 rpm chuck, the platform is engineered for a balance of performance, stability and material control.
Configured for your operation
Standard configuration includes the 12 kW fibre laser source, fibre cutting head, 12 m automated handling, 510 mm chuck, CypCut control, TubePro nesting, servo drives, chiller, central lubrication and safety guarding. Options such as secondary chuck arrangements, marking, micro-joint processing, fume extraction and extended handling can be considered around your applications.
Bring ART into the planning early
ART can work with you on material sizes, profile mix, cutting requirements, handling strategy and installation planning. That lets us configure a machine and workflow that fit the work you run today and the opportunities you want to pursue next.
