We’re doing special deals on the GH series High Performance Metal Cutting Laser. These are a premium machine with higher power and faster performance than other models.
Fill in your contact details at the bottom of the page and someone will happily answer any questions and give you a firm quotation.

HSG GH series from ART.

High Power Laser Cutting Machines for Plate and Sheet Metal 6kW to >40kW

World leading technology is built into every HSG laser cutting machine. A high end laser source is coupled to HSG's in-house developed laser focusing head to provide excellent stability and reliability. Using Ethercat bus technology to communicate with all motion components provides a fast and accurate system that is very reliable.

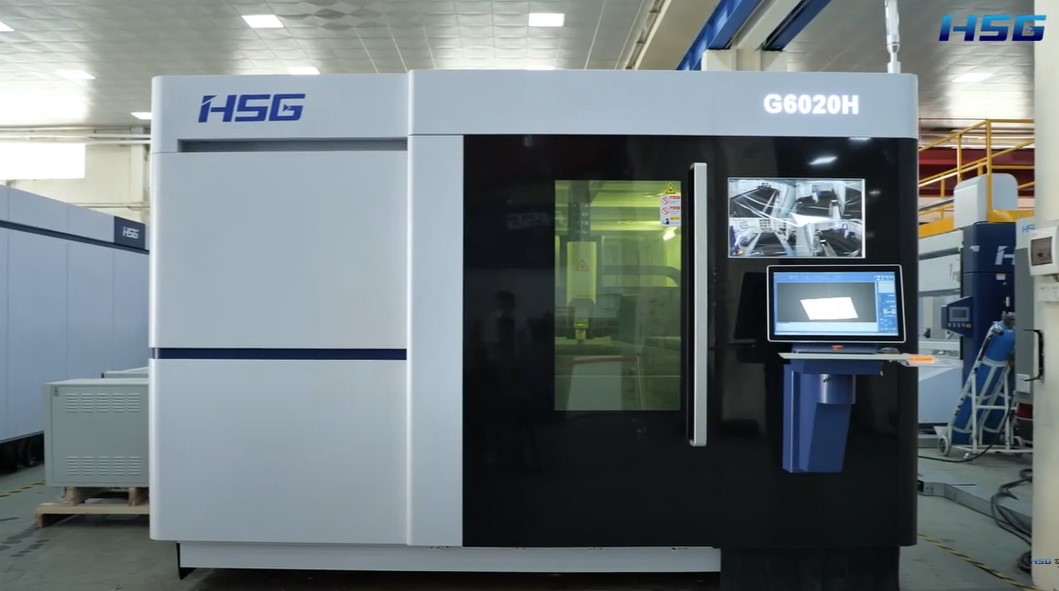

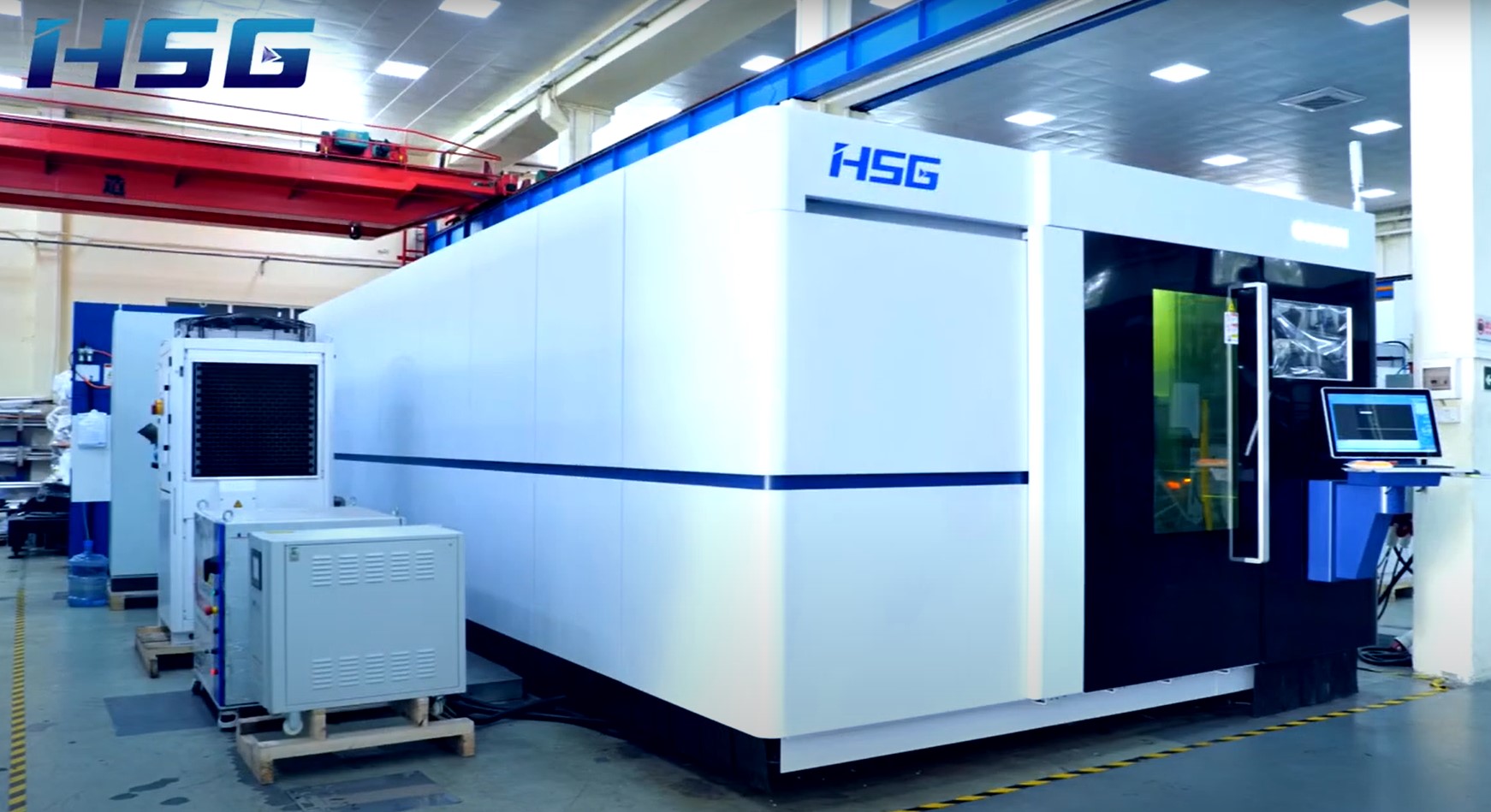

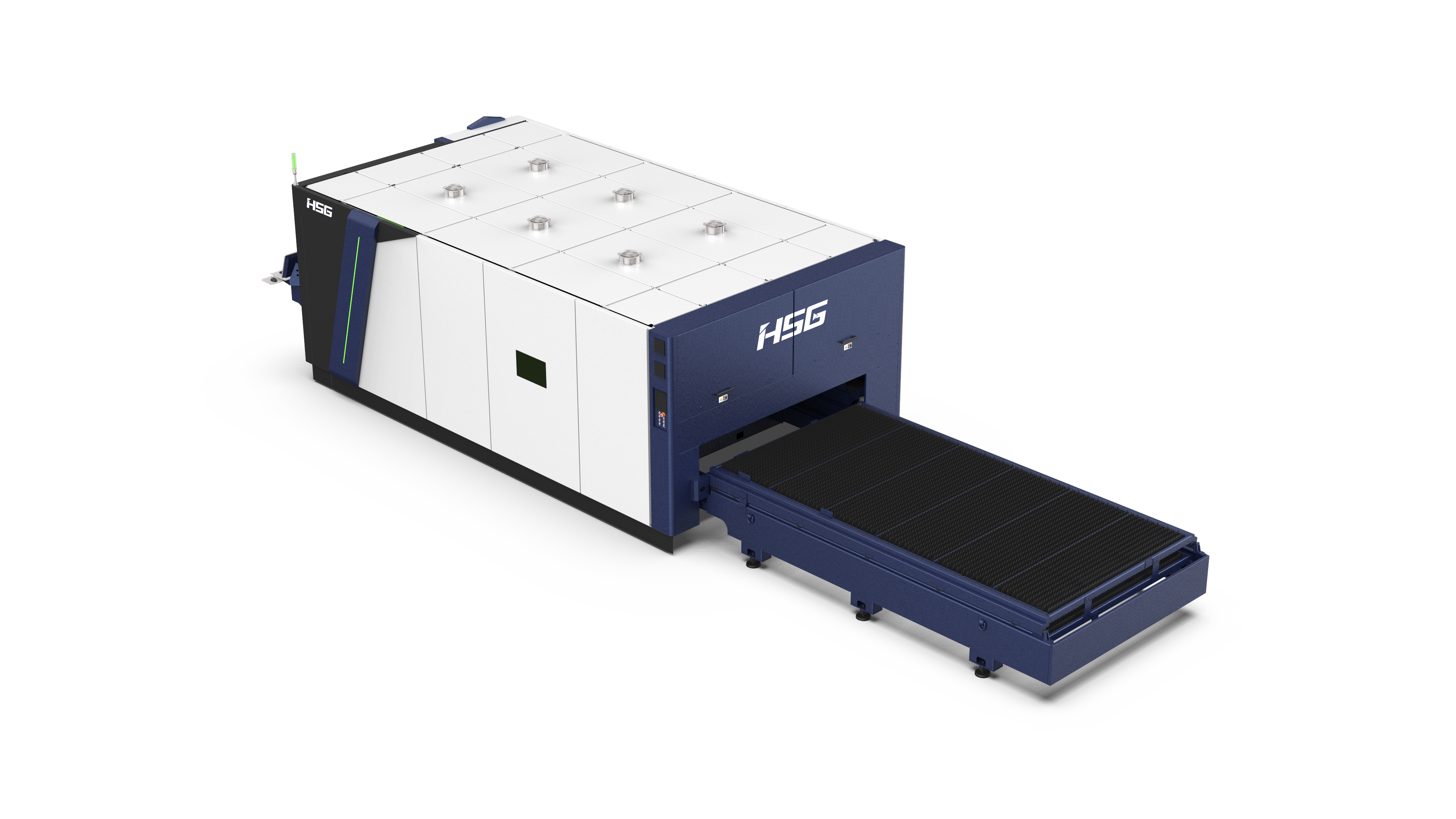

GH Series High Power Laser Cutting Machines - 6kW to >40kW

The GH series of High-Power laser cutting machines from HSG provide amazing cutting capacity and performance for steel, stainless and aluminium cutting.

Reliable Optical System

  • These machines use only the highest quality fibre laser power sources and Japanese developed optical technology to provide high speed cutting and stable performance with high performance servo system.

Stable Mechanical System

  • Semi hollow machine body and aluminum crossbeam provide the machine with better stability and dynamic performance.

HSG Cutting Technologies

  • Integrated state-of-the-art cutting technologies developed by HSG Laser over the past decades allow these machines to get a better cutting performance during running.



ART stands behind every HSG Machine we sell!

Advanced Robotic Technology is the agent for HSG Laser around Australia. We are proud to be partnered with such a reputable company. When you buy fibre laser from ART you are getting the full support of our 25 years experience in cnc technology. We stake our reputation on it.

Rather than re-invent the wheel by trying to compete against world leaders in the fibre laser industry, ART have decided it was best to team up with the best and combine our resources to provide an excellent customer experience that cannot be provided by other importers. ART has a team of dedicated technicians that work in conjunction with HSG engineers in other countries to give the end user experience that has been lacking in the industry until now.

ART is an expert in automation and can assist with your every laser requirement, from basic light sheet cutting at 3kW, all the way up to 60mm plate cutting with 40kW or greater as they become available.

Our technically capable staff are more than salespersons… they are dedicated professionals that really know the cutting industry and work with you to achieve your desired outcome.

Massive Production Database!

* Users can invoke cutting technology from the database when cutting sheet of different materials and thickness
* Have multiple thick sheet cutting technologies like air cutting, counterboring technology, perfect finish cut (PFC), lightening-fast piercing, etc.

Technical Data

Cutting Size mm G3015H – 3064mm × 1532mm

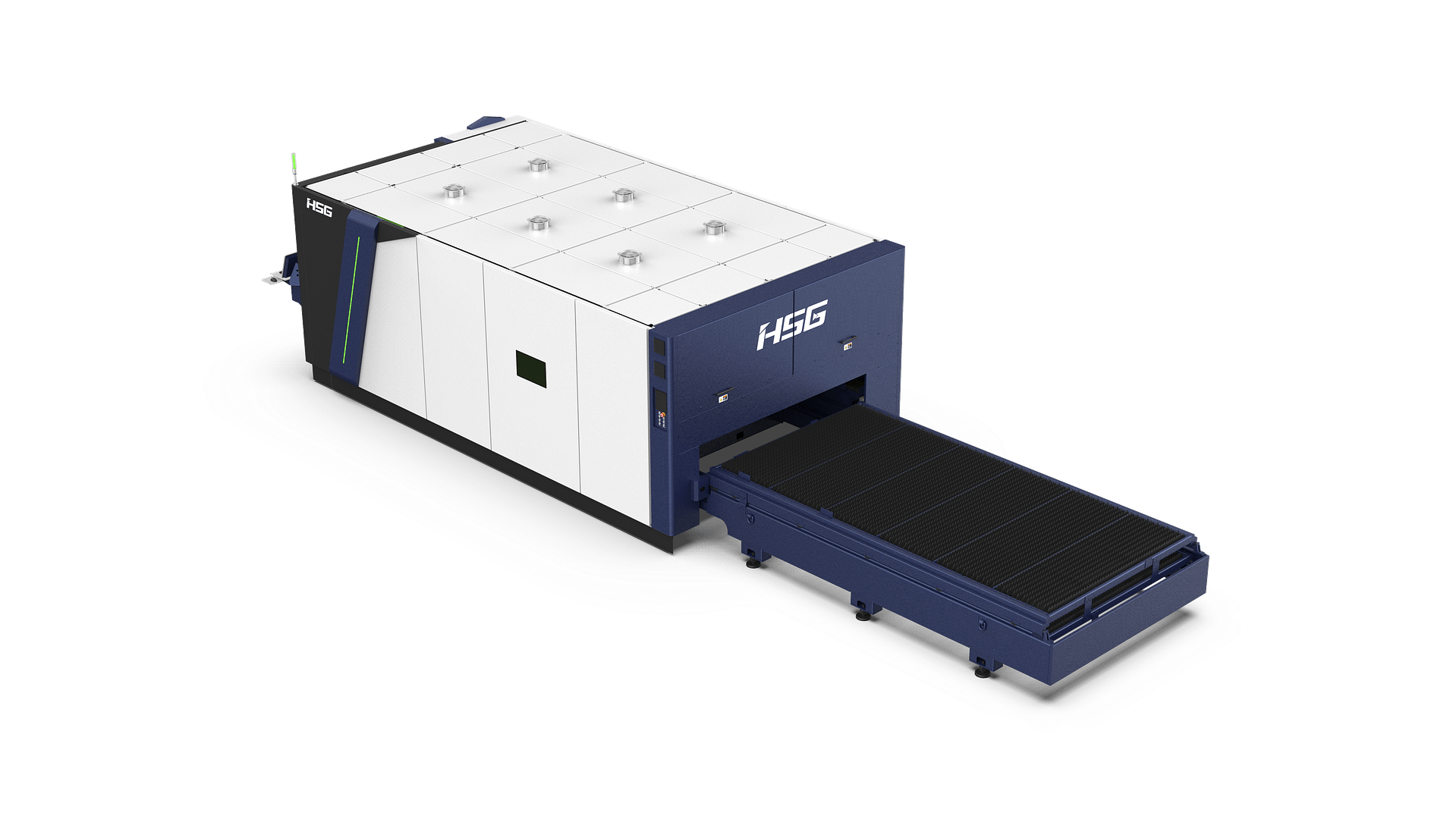

G4020H – 4064mm × 2032mm

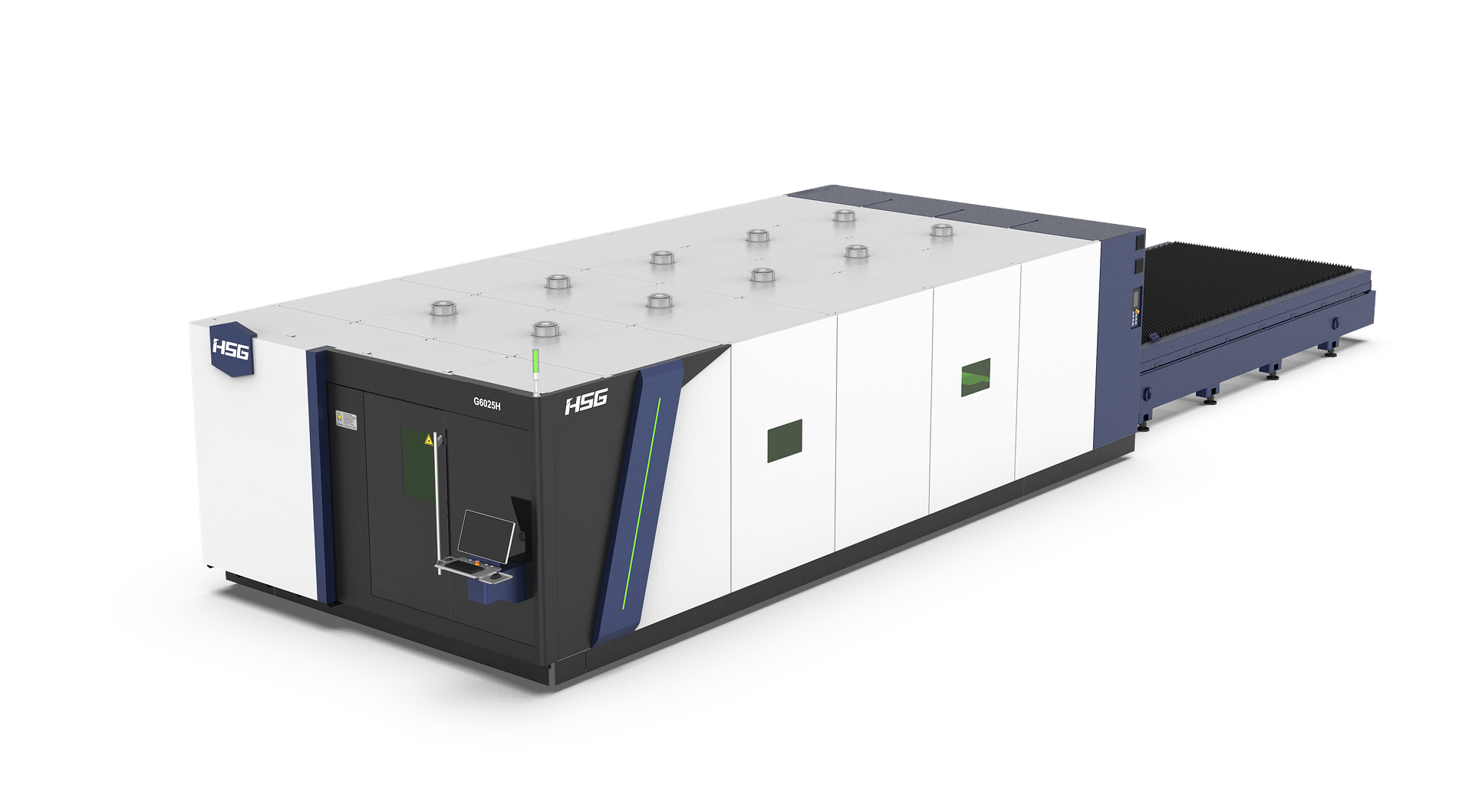

G6025H – 6064mm x 2532mm
Max Acceleration G 2
Max Speed m/min 200
Positioning Accuracy mm/m ±0.03
Repeat Positioning Accuracy mm ±0.02
Loading Weight kg About 3700
Voltage V 415V
Frequency Hz 50
Dimension mm G3015H model approx. 9450mm x 3080mm x 2450mm

G4020H model approx. 11450mm x 3580mm x 2450mm

G6025H model approx. 15450mm x 40080mm x 2450mm

Power Requirement Data KW/A 81KW/162A(12000W)

121KW/242A(20000W)

171KW/342A(30000W)

Operation Requirement
Electricity

Voltage: 415V (through stabiliser)

Frequency: 50Hz

Voltage stability: ±5%

Voltage regulation: <2%

Assist gas Supply Cutting

Purified dry compressed air and high purity,Discharge Oil Content :≤0.01ppm.Solid≤0.01um .Dew point:-20℃ ~ -40℃

Oxygen (O2) and nitrogen (N2) purity not less than 99.9% Air ,Oxygen and nitrogen pressure not less than 16 bar

Sheet metal

Homogeneous

Smooth

Clean

Compressed Air Supply Device

Pressure:  16 bar

Volume:  1m ³

Discharge Oil Content :≤0.01ppm.Solid≤0.01um .

Dew point:-20℃ ~ -40℃

Laser Source

HSG use most well-known brands of laser resonator in the market.

High output power, high quality laser beam, over 40% coefficient of efficiency. Compact design, solid and easy to install. high electrical efficiency and environmental friendly.

HSG global strategic partner

Laser Head – HSG Self Developed



Focusing Accuracy up to 0.01mm

With close-loop motor installed inside the laser head, the focus speed is much faster than market level to achieve higher piercing speed in high thickness materials.

Full Protection Inside & Outside

Equipped with double bottom protective lens inside, extending the lifetime of main lens. Equipped with stainless steel cover outside, protect the lines from laser flares.

Speed Reducer & Gears

Backlash of less than 4 arc min. Smooth operation, high transmission accuracy and good feed force.

The reduction gear and wheel gear are welded to effectively guarantee the accuracy of the machine tool.



Control System – HSG AlphaT Plus

Bus control through EtherCAT protocol, fast control speed with HSG fiber laser cutting optical and transmission system.

Equipped with multiple function like scan cutting, 5 stage piercing, laser energy precise control, maintenance reminder, process report etc.

Machine Body – Semi Hollow Welding Structure

Extra-high Strength Steel

Tensile strength over 500 MPa

Strong Rear Frame

Added taper pin lock, 0 shaking during cutting and loading process.

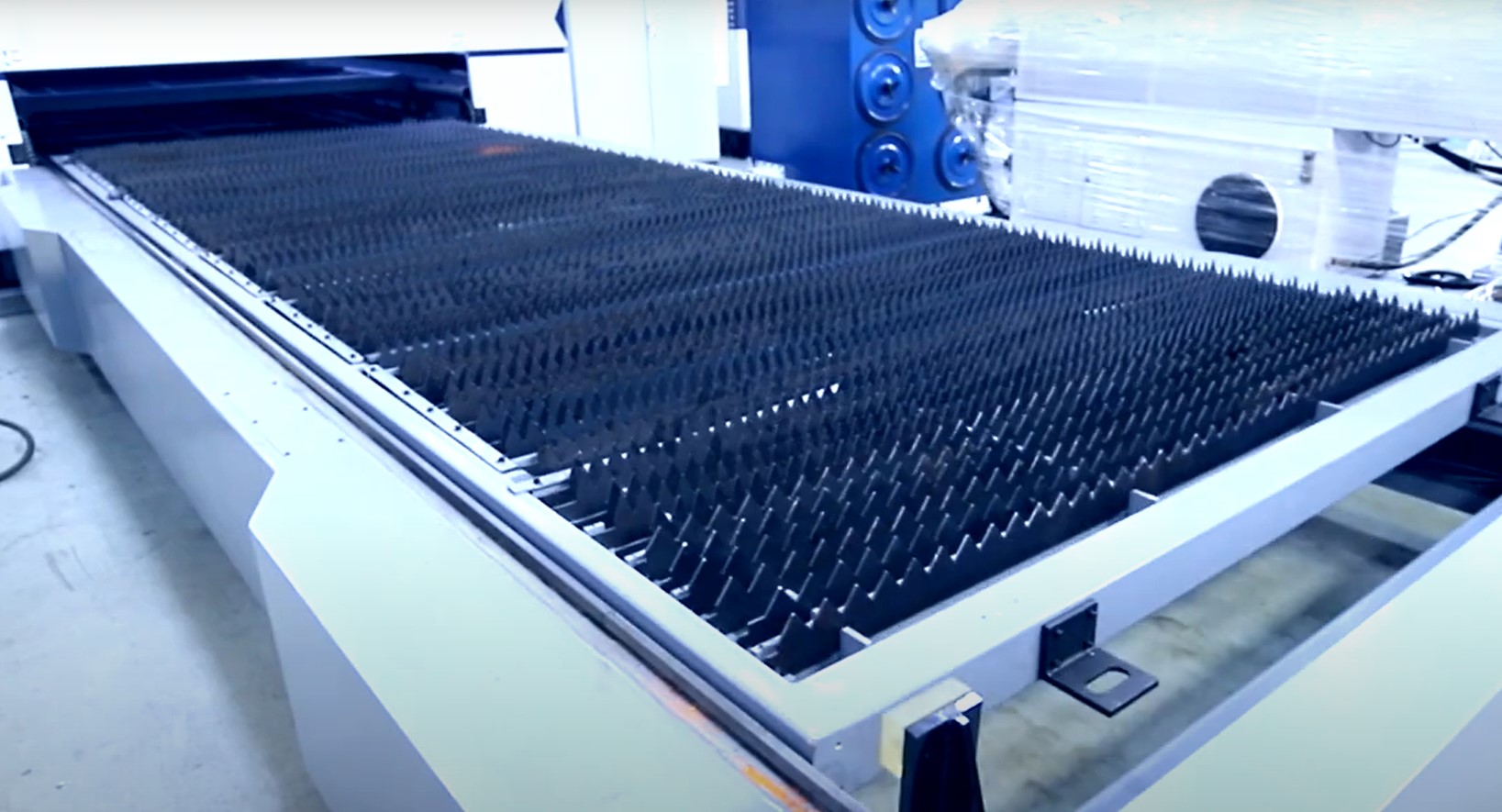

Strong blade worktable, bigger holding capacity.

Professional Manufacture Process

Each machine body will pass at least 6 steps including welding process,stress annealing , rough machining etc. for release the welding stress.

Crossbeam – Aluminum Beam

Light-weight, and with good dynamic performance, with better flexibility and ductility. Without heavy weighted iron beam, no need to operate beam with large inertial motor power. Less electricity is consumed during running.

Cutting Capacity

Material Thickness(mm)  12KW 20KW 30KW
Speed(m/min) Speed(m/min) Speed(m/min)
Carbon Steel(Oxygen) 1 8.0-12.0 8.0-12.0 8.0-12.0
2 6.0-7.5 6.0-7.5 6.0-7.5
3 3.6-4.5 3.7-4.6 3.7-4.6
4 3.2-3.8 3.3-3.9 3.3-3.9
5 3.0-3.4 3.1-3.5 3.1-3.5
6 2.6-3.3 2.6-3.4 2.6-3.4
8 2.3-2.8 2.5-3.2 2.5-3.2
10 2.0-2.8 2.1-3.2 2.0-3.6
12 1.6-2.7 1.7-3.2 1.8-4.2
16 1.4-2.4 1.6-3.1 1.4-3.4
20 1.0-2.4 1.2-3.0 1.3-3.2
25 0.8-1.3 1.0-2.4 1.1-3.2
30 0.4-1.2 0.6-1.5 1.0-2.9
40 0.2-0.6 0.4-0.9 0.5-1.6
50 0.2-0.5 0.3-1.0
60 0.13-0.17 0.15-0.3
70 0.12-0.18
80 0.08-0.13
Carbon Steel(Nitrogen) 1 46.0-60.0 48.0-60.0 48.0-60.0
2 25.0-30.0 29.0-40.0 40.0-50.0
3 20.0-25.0 24.0-35.0 32.0-40.0
4 19.0-25.0 22.0-32.0 28.0-36.0
5 13.0-20.0 15.0-25.0 24.0-32.0
6 8.0-13.0 14.0-21.0 20.0-30.0
8 7.0-9.0 10.0-15.0 16.0-24.0
10 5.0-7.0 7.0-11.0 13.0-17.0
12 3.5-5.0 6.0-7.5 9.0-13.0
14 2.0-3.5 3.5-5.5 7.0-9.5
16 2.0-2.3 3.3-4.5 4.8-8.0
18 2.5-3.2 4.0-6.0
20 1.4-2.3 3.0-4.5
25 1.8-2.8
Carbon Steel(Air) 1 47.0-60.0 50.0-60.0 50.0-60.0
2 24.0-30.0 31.0-40.0 40.0-50.0
3 20.0-25.0 29.0-35.0 35.0-45.0
4 18.0-24.0 21.0-30.0 30.0-38.0
5 13.0-18.0 19.0-27.0 26.0-35.0
6 11.0-15.0 17.0-22.0 22.0-33.0
8 8.0-12.0 11.0-17.0 17.0-28.0
10 5.5-7.5 8.0-13.0 14.5-20.0
12 3.5-5.5 6.0-9.0 10.0-15.0
14 3.0-3.6 4.5-7.0 8-11.0
16 4.1-5.5 6.0-9.0
18 2.5-3.8 4.7-7.0
20 2.1-3.0 3.3-5.0
25 2.0-3.0
Stainless steel(Nitrogen) 1 48.0-60.0 50.0-60.0 50.0-60.0
2 24.0-30.0 33.0-41.0 40.0-48.0
3 20.0-25.0 28.0-35.0 36.0-45.0
4 18.0-24.0 21.0-32.0 30.0-42.0
5 14.0-19.0 20.0-28.0 28.0-40.0
6 9.0-12.0 19.0-25.0 26.0-37.0
8 6.5-10.0 13.0-17.0 18.0-25.0
10 5.0-7.0 10.0-13.0 14.0-18.0
12 3.2-5.5 8.5-10.0 10.0-15.0
14 2.8-4.5 6.0-8.5 8.0-12
16 2.0-3.0 4.5-6.0 7.0-10
18 2.0-2.3 2.9-3.6 5.0-7.5
20 1.2-1.9 2.4-3.0 3.0-5.5
25 0.7-1.0 1.3-1.8 2.4-3.5
30 0.5-0.7 0.8-1.2 1.5-2.2
40 0.2-0.3 0.16-0.5 0.6-1.0
50 0.15-0.2 0.2-0.5
60 0.1-0.12 0.15-0.4
70 0.08-0.15
80 0.06-0.1
Stainless steel(Air) 1 48.0-60.0 50.0-60.0 50.0-60.0
2 25.0-30.0 35.0-40.0 40.0-48.0
3 22.0-27.0 28.0-35.0 32.0-45.0
4 21.0-26.0 26.0-33.0 28.0-42.0
5 18.0-20.0 22.0-28.0 26.0-40.0
6 13.0-15.0 20.0-23.0 28.0-38.0
8 10.0-12.0 15.0-18.0 20.0-26.0
10 5.0-7.0 10.0-13.0 15.0-18.0
12 4.0-6.0 8.0-10.0 11.0-16.0
14 3.0-4.0 7.0-8.5 8.5-12.5
16 2.3-3.2 5.2-6.5 8.0-10
20 1.1-1.8 3.0-3.3 4.0-6.5
25 0.7-1.3 2.0-2.5 2.5-3.6
30 0.7-0.9 1.3-1.7 2.4-3.5
40 0.7-1.0 2.0-3.2
50 0.4-0.6 0.8-1.5
60 0.15-0.2 0.1-0.3
70 0.1-0.15

Please read before buying a fibre laser cutting machine!!! It could save you a fortune, or your vision!.

You cannot safely operate an open type fibre laser without building a specialised room. Sooner or later workplace health and safety will clamp down on open type machines!
