HDP Plasma.

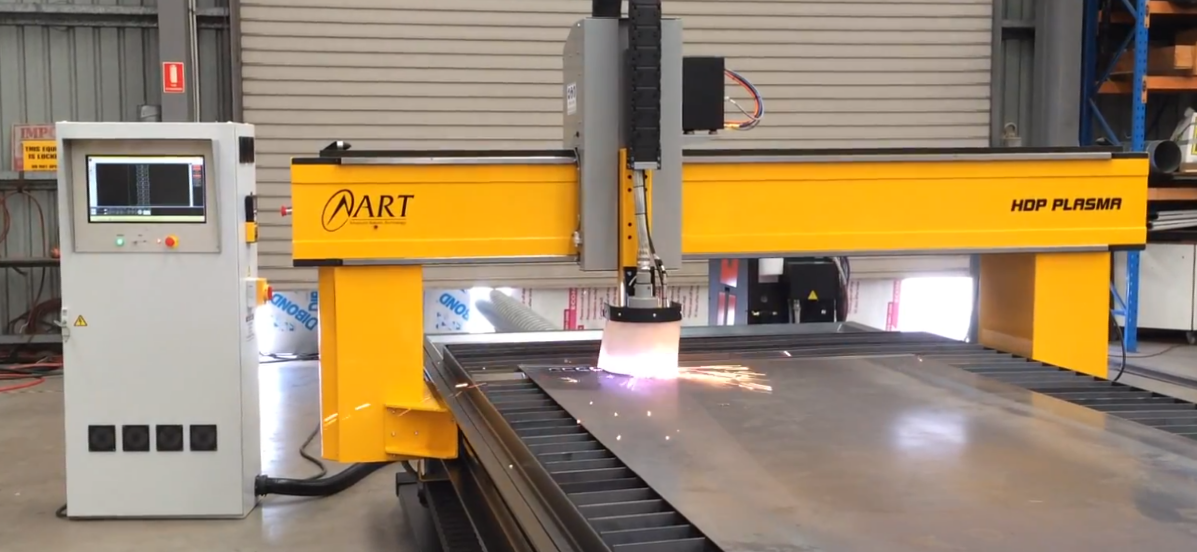

ART's flagship high-definition plasma profile cutting table

The best performance and functionality for your business using the latest in Hypertherm XPR plasma technology. The super high gantry clearance allows cutting of 400mm+ high profiles and is built tough for durability and reliability. The heavy duty chassis is designed to withstand years of cutting without buckling or distortion. Active dry fume extraction follows the torch to extract fumes where th

Advanced Features.

Provide better performance

The HDP High Definition Plasma can be configured to suit your requirements.

ProfileShop V4 Controller

ProfileShop V4 is a full 3D capable controller interface that provides a real-time display and simulation of all machining processes. All jobs are managed by on-screen controls for setting origins, changing tools, starting, stopping and recovering jobs.

Dross conveyors

Conveyors remove fallen parts and dross from under the cutting area. Eliminates clean-out.

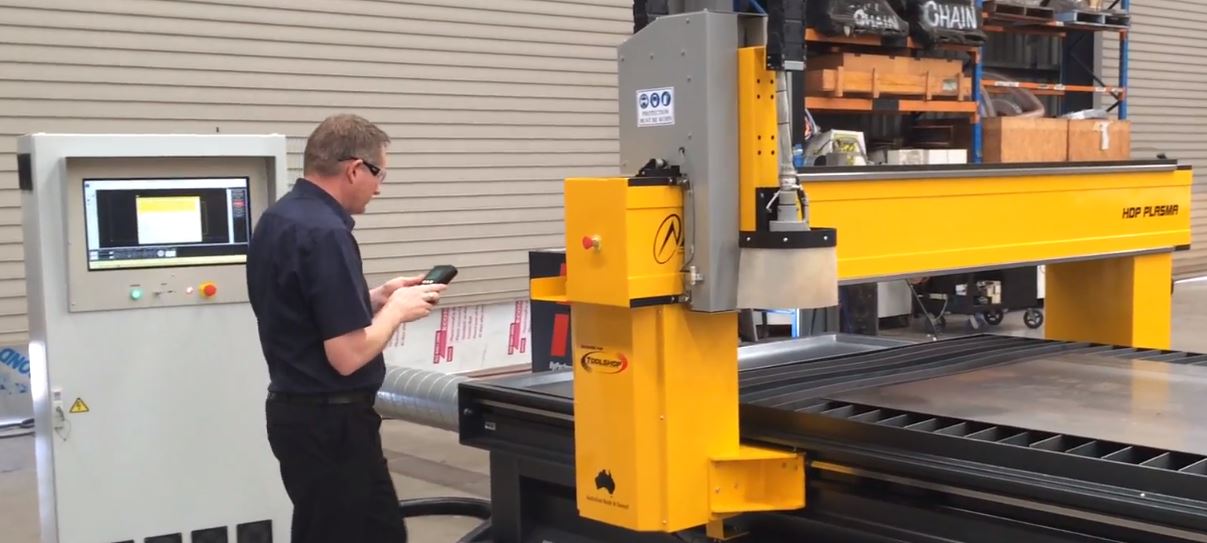

Wireless pendant controller

Allows the operator to get close to the action for optimal view during manual operations, or even stop the machine remotely from anywhere in the factory. Works in conjunction with touchscreen.

More Information

.

Work Area
Multiple options available. Common sizes are 4000mm x 1800mm, 6000mm x 1800mm, 6000mm x 2400mm, 10000mmm x 3600mm
Maximum cutting thickness
Hypertherm XPR170 - 50mm Edge Start, Hypertherm XPR300 - 80mm Edge Start
Rapid Positioning speed
45000mm/min with optional safety scanners, 24000mm/min without safety scanners
Maximum cutting speed
As per rapid speeds
Cleanout method
Automated conveyors remove dross and deposit it in bins.
Parts retrieval
Fallen parts are removed from plasma stream via conveyor
Positioning Accuracy
0.05mm per 1000mm
Repeatability
0.01mm
Positioning system
High power Ethercat AC servomotors with battery-free absolute encoders on all axes
Drive mechanism
Helical rack and pinion on X & Y, Ball screw on Z
Gearboxes
Helical planetary reducers - Japanese made
Guidance system
Precision 4 row square linear rail - German made
Cutting deck
Slats vary depending on plasma source. Options are 50mm x 3mm, 75mm x 3mm, 100mm x 5mm, 150mm x 5mm
Fume extraction
Dry extraction via servo-driven automated ducting
Installation method
Mono steel construction - Drop on floor and connect services
Fume Filtration
Camfil reverse pulse extraction and filtration system

More Information

Features.

Air Booster & Regulator

Low or variable air pressure affects cut quality and shortens consumable life. ART's Booster & Regulator System provides consistent air pressure over and above the shop air supply.

Read more

Alignment Laser pointer

The precise laser dot makes setting up the job simple. It allows the operator to set the origin of the job and align to rotated material.

Read more

Bar code scanner

Just scan the bar code on the nest report and the correct file is loaded into the controller automatically. Reduces human error and automates the process.

Read more

Built-in WiFi networking

The controller easily connects into your existing WiFi network for downloading job files. Also supports remote access and diagnostics for the ART service team.

Read more

Camfil Fume Extraction & Filtration Unit

Fume Extraction is essential for workplace health and safety, as well as the comfort of staff. The reverse pulse cleaning system ensures maximum performance.

Read more

Dross conveyors

Conveyors remove fallen parts and dross from under the cutting area. Eliminates clean-out.

Read more

Heavy duty AC servo drives

Coupled with precision planetary gearboxes provide fast positioning. Hardened and ground helical rack and pinion provides smooth motion with excellent edge finish on machining.

Read more

Heavy duty fabrication

Fully welded steel chassis construction using 250mm deep PFC & UB profiles. Close cross beam spacing gives unparalleled stability. Steel is machined for precision linear components.

Read more

ProfileShop V4 Controller

ProfileShop V4 is a full 3D capable controller interface that provides a real-time display and simulation of all machining processes. All jobs are managed by on-screen controls for setting origins, changing tools, starting, stopping and recovering jobs.

Read more

Refrigerated Air Dryer

Any moisture in the air supply will erode the plasma consumables very quickly. It is a requirement of the plasma system manufacturers to supply clean dry air.

Read more

Under-deck extraction ducting

Controller automatically moves extraction point to follow cutting torch. Improves extraction performance dramatically.

Read more

Wireless pendant controller

Allows the operator to get close to the action for optimal view during manual operations, or even stop the machine remotely from anywhere in the factory. Works in conjunction with touchscreen.

Read more

Height Sensing Probe

Initial Height Sensing (IHS) is critical for any production-quality plasma system.

Read more
